JST PH 3.96mm VHR-4N 4 Pin VH Series Connector Wire Harness

FOB Reference Price:Get Latest Price
  • >=1000 Pieces
    US $0.615
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JST VH Connector Wire Harness
Model Number:
VH Series Wire Harness
Application:
Electronic
Connector Type:
Receptacle
Connector Housing:
Wire to Board Crimp style Connector
Pitch:
3.96 mm
Circuit Count:
4 Pin
Series:
JST VH Series Connector
Termination:
SVH-21T-P1.1
Wire Guage:
UL 1007 18AWG
Wire Harness Length:
200mm or custom made length
Current Rating:
7.5A AC, DC
Voltage Rating:
250V AC, DC
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
if you need we can do according to your request.
Port
Shenzhen
Lead Time :
5-7 work days

PH 3.96mm VHR-4N VH Series Connector 4 Pin JST Wire Harness

Product Description.jpg



 FLECONN can custom PH 3.96mm VHR-4N VH Series Connector 4 Pin JST Wire Harness with different length.



Product Specifications


1. Connector
Connector Gender: Female
Housing: JST VHR-4N wire to board crimp style connector or replacement
Termination: SVH-21T-P1.1 or replacement



2. Wire Guage: UL 1007 18AWG



2.1 Conductor
Sectional Area AWG/mm 34/0.178±0.008TS
material Tinned Copper
Sectional Area mm² 0.85
Stranded Diameter mm 1.20



2.2 Insulation
Material PVC
The average thickness mm 0.45
Minimum Guage mm 0.35
Color Red, Black
Insulation Diameter mm 2.1±0.1



3. Electrical Performance:
Rating voltage: 250V AC
Rating Current: 7.5A



4. Mechanical Performance:
100 cycles at each



5. Temperature
operating temperature, fixed installation: -25 to 80℃.



Service: Wiring Harness OEM
Certificate: CE, RoHS



Detailed Images.jpg

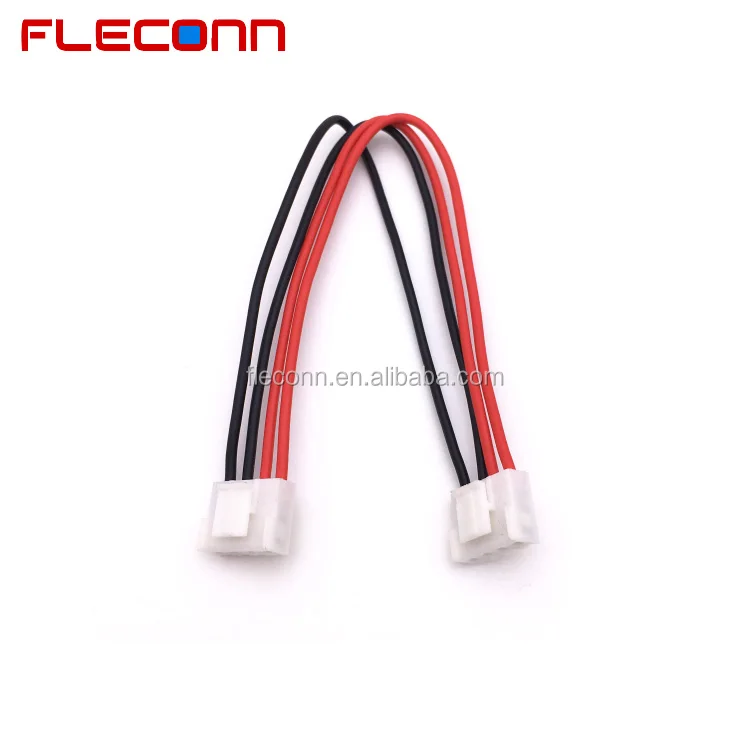

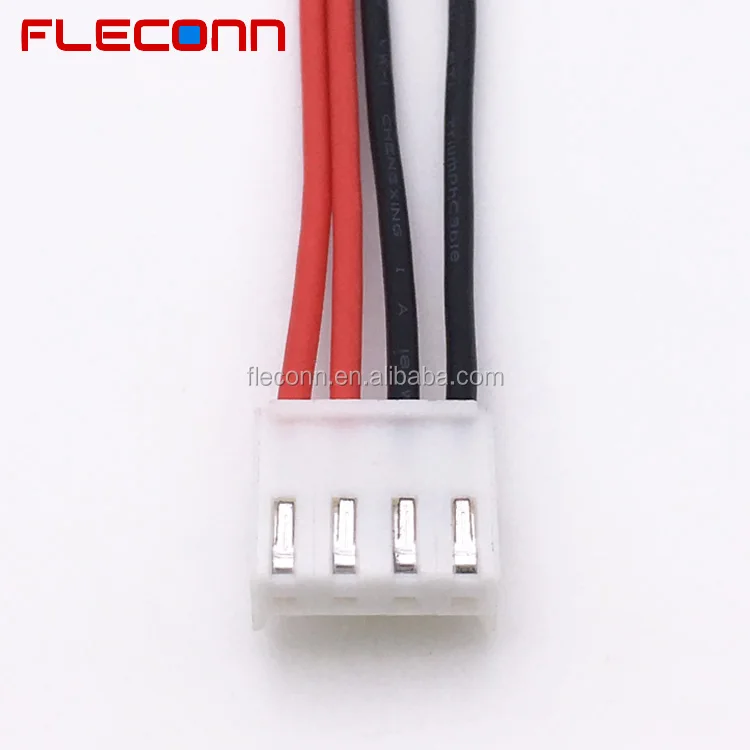

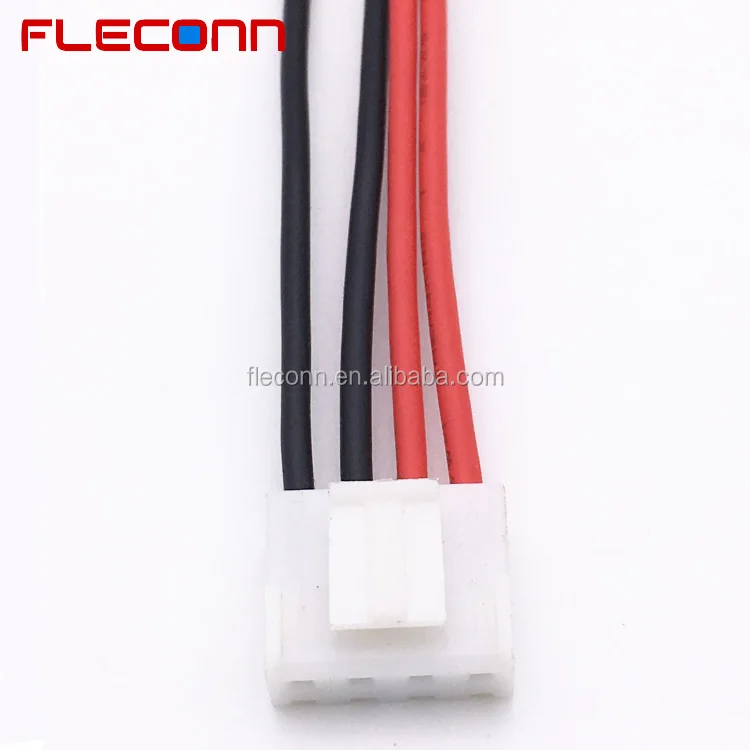

 4 Pin Wire Harness.jpgJST VHR-4N Wire Harness.jpgJST VH Series Wire Harness.jpgCustom JST Wiring Harness.jpg







Our Company Category.jpg

Our Company



Packing & Delivery.jpg



Packing and Delivery



Our Service.jpg

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



FAQ Category.jpg

Q1. Can I get some samples?

A: Yes, regarding to standard connector and cable, if we have stock products, we can provide one piece of free sample; if there is no stock, we need to charge sample production cost. Regarding to the customized connectors and cable assemblies, we'll charge corresponding mold and tooling cost and sample production cost.

Q2. Can I choose wire guage or cable specifications?
A: Yes, we can custom wire / cable with various wire guages and cable specifications by UL and NOUL styles.


Q3. Can I choose the length or color?
A: Yes, we can custom cable length and jacket color by customer's requirements.

Q4. What is the delivery time?
A: Regarding to standard products, if we have stock materials, we can deliver the goods in one week, if we need to purchase raw materials, the delivery time is depend on our supplier's delivery time.

Q5. What is the Payment Terms?
A: T/T, L/C at sight, Western Union, Paypal, etc.

Q6. Can I trust you?
A: Absolutely Yes, we are Alibaba verified supplier and you may directly choose to pay by Alibaba online guarantee transaction.
