Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Wire Harness Manufacturers
  • Model Number: 43025-1000 Wire Harness
  • Application: Automobile
  • Connector Gender: Receptacle
  • Connector Housing: 43025-1000 Crimp Housing
  • Pitch: 3.0 mm
  • Circuit No.: 10 Pin
  • Series: Micro-Fit 3.0 Connector
  • Termination: 43030-0001
  • Wire Guage: UL 1007 20AWG
  • Wire Length: 380mm or customized length
  • Insulation Material: PVC
  • Operating Temperature:: 40 to 80 ℃

Packaging & Delivery

Packaging Details if you need we can do according to your request.
Delivery Time 5-7 work days

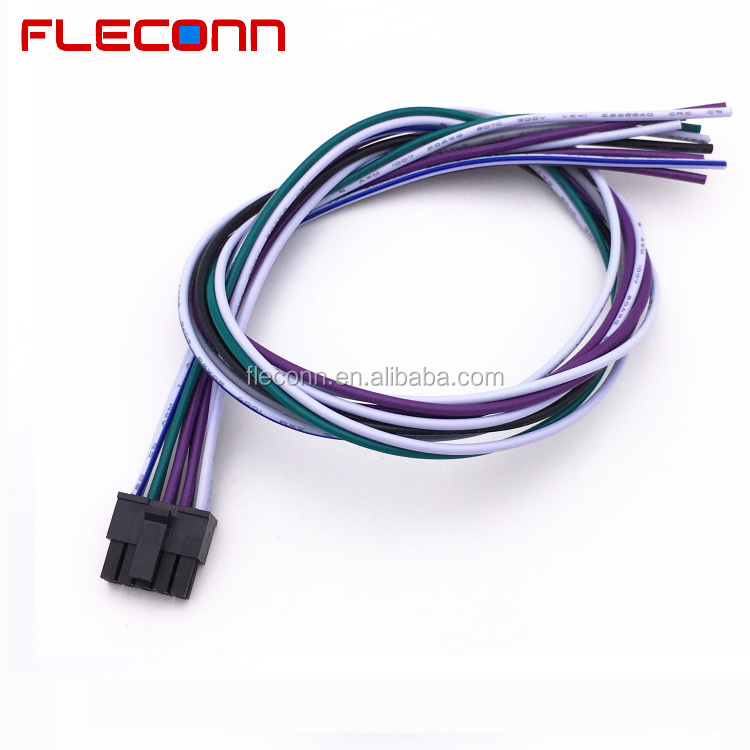

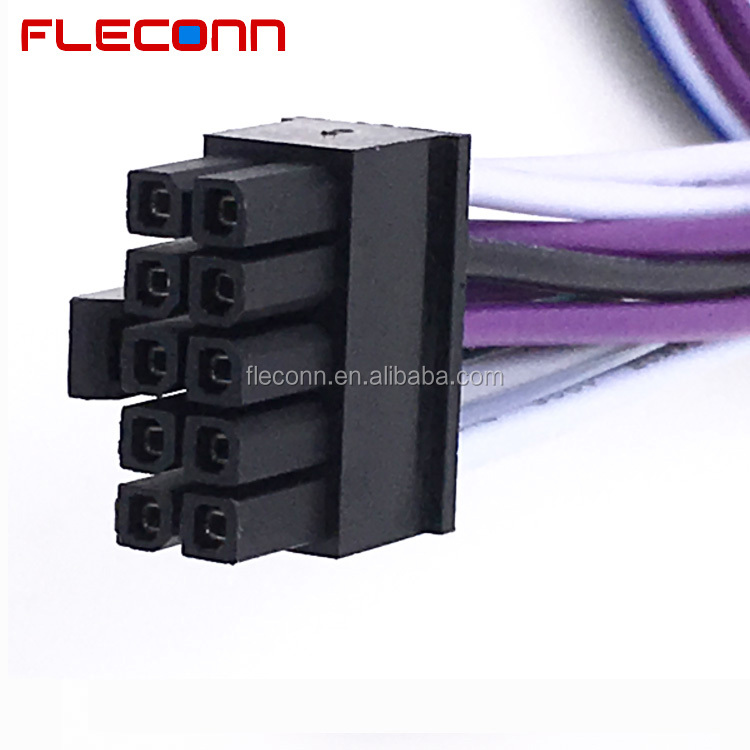

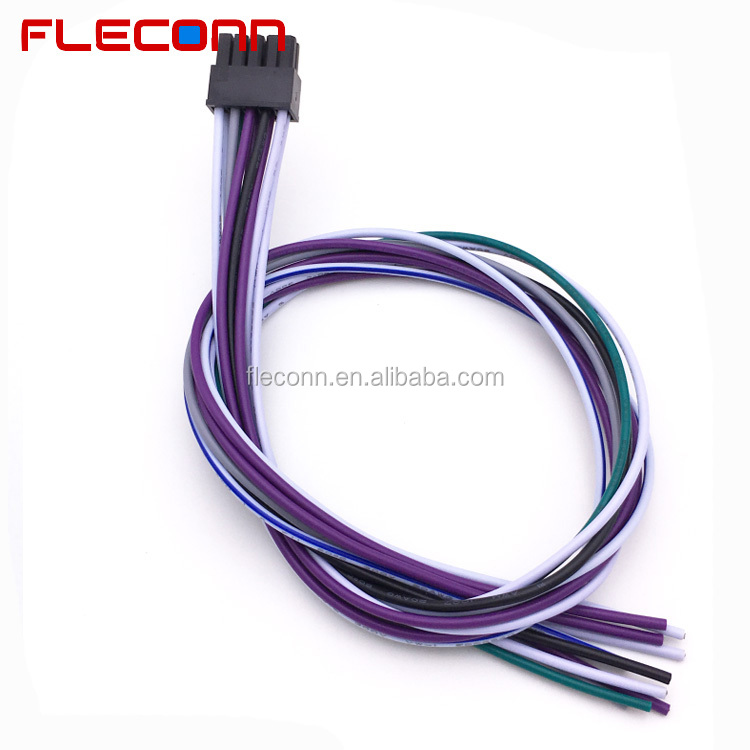

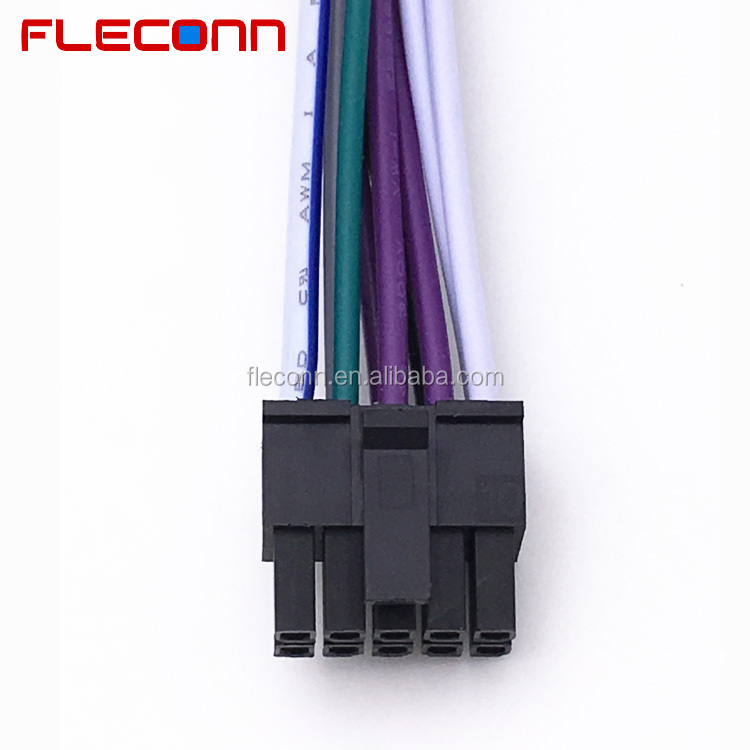

Molex 43025-1000 3.0mm Pitch 10 Pin Connector Wire Harness Manufacturers



 FLECONN, as an wire harness manufacturer, can custom various wire harness for global customers.



Product Specifications


1. Connector
Connector Gender: Female Receptacle
Housing: Molex 43025-1000 or replacement
Termination: 43030-0001 or replacement



2. Wire Guage: UL 1007 20AWG



2.1 Conductor
Sectional Area AWG/mm 21/0.178±0.008TS
material Tinned Copper
Sectional Area mm² 0.22
Stranded Diameter mm 0.94



2.2 Insulation
Material PVC
The average thickness mm 0.43
Minimum Guage mm 0.21
Color: Blue-White, Green, Purple, Black, White, Black, Gray
Insulation Diameter mm 1.8±0.1



3. Electrical Performance:
Rating voltage: 300V AC
Rating Current: 5A



4. Mechanical Performance:
100 cycles at each



5. Temperature
operating temperature, fixed installation: -40 to 80c deg.



Service: Wiring Harness OEM
Certificate: CE, RoHS

















1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



Q1. Can I get some samples?

A: Yes, regarding to standard connector and cable, if we have stock products, we can provide one piece of free sample; if there is no stock, we need to charge sample production cost. Regarding to the customized connectors and cable assemblies, we'll charge corresponding mold and tooling cost and sample production cost.

Q2. Can I choose wire guage or cable specifications?
A: Yes, we can custom wire / cable with various wire guages and cable specifications by UL and NOUL styles.


Q3. Can I choose the length or color?
A: Yes, we can custom cable length and jacket color by customer's requirements.

Q4. What is the delivery time?
A: Regarding to standard products, if we have stock materials, we can deliver the goods in one week, if we need to purchase raw materials, the delivery time is depend on our supplier's delivery time.

Q5. What is the Payment Terms?
A: T/T, L/C at sight, Western Union, Paypal, etc.

Q6. Can I trust you?
A: Absolutely Yes, we are Alibaba verified supplier and you may directly choose to pay by Alibaba online guarantee transaction.
