Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Custom Wiring Harness
  • Model Number: JST PHR-3 Wire Harness
  • Application: Electronic
  • Connector Type: Receptacle
  • Connector Housing: Wire to Board Crimp style Connector
  • Pitch: 2.00 mm
  • Circuit Count: 3 Pin
  • Series: JST PH Series Connector
  • Termination: SPH-002T-P0.5S
  • Wire Guage: UL 1007 24AWG
  • Wire Harness Length: 300mm or custom made length
  • Current Rating: 3A AC, DC
  • Voltage Rating: 100V AC, DC

Packaging & Delivery

Packaging Details Each bag for 50 pcs PHR 2 3 4 5 6 pin 2.0mm pitch JST PH series connector wire harness
Delivery Time 5-7 work days

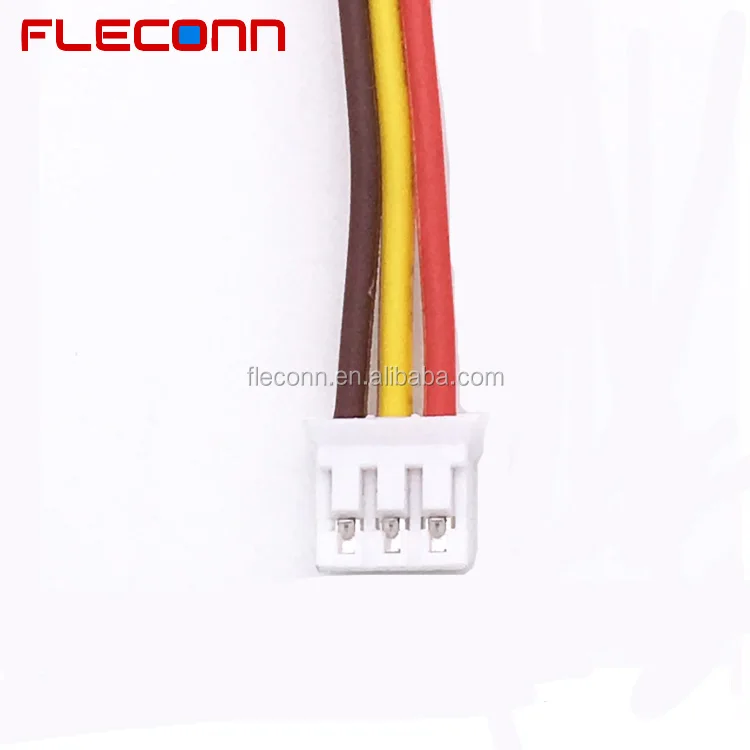

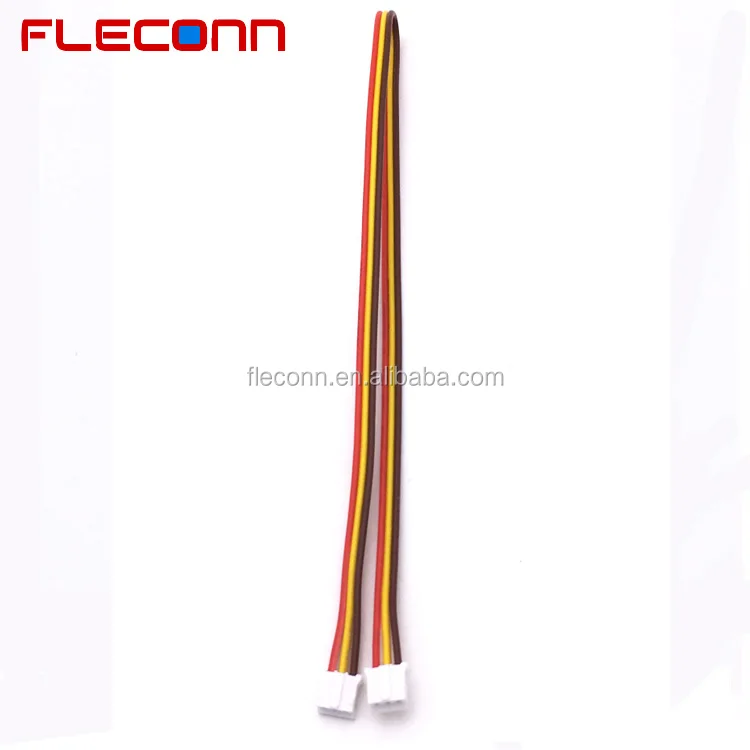

PHR 2 3 4 5 6 Pin 2.0mm Pitch JST PH Series Connector Wire Harness



 FLECONN can custom PH 2.0mm PHR-2 PHR-3 PHR-4 PHR-5 PHR-6 PH Series Connector 2 circuit 3 Pin 4 Pole 5 Position 6 way JST Wire Harness with different length.



Product Specifications


1. Connector
Connector Gender: Female
Housing: JST PHR-3 wire to board crimp style connector or replacement
Termination: SPH-002T-P0.5S (30~24AWG), SPH-002T-P0.5L(28~24AWG) or replacement



2. Wire Guage: UL 2468 3P 24AWG



2.1 Conductor
Sectional Area AWG/mm 11/0.16±0.008TS
material Tinned Copper
Sectional Area 0.20mm²
Stranded Diameter 0.61mm



2.2 Insulation
Material PVC
The average thickness: 0.40mm
Minimum Guage: 0.30mm
Color: Red, Yellow, Brown or other available color
Insulation Diameter: 1.4±0.1mm



3. Electrical Performance:
Rating voltage: 100V AC
Rating Current: 3.0A



4. Mechanical Performance:
100 cycles at each



5. Temperature
operating temperature, fixed installation: -25 to 80℃.



Service: Wiring Harness OEM
Certificate: CE, RoHS





















1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



Q1. Can I get some samples?

A: Yes, regarding to standard connector and cable, if we have stock products, we can provide one piece of free sample; if there is no stock, we need to charge sample production cost. Regarding to the customized connectors and cable assemblies, we'll charge corresponding mold and tooling cost and sample production cost.

Q2. Can I choose wire guage or cable specifications?
A: Yes, we can custom wire / cable with various wire guages and cable specifications by UL and NOUL styles.


Q3. Can I choose the length or color?
A: Yes, we can custom cable length and jacket color by customer's requirements.

Q4. What is the delivery time?
A: Regarding to standard products, if we have stock materials, we can deliver the goods in one week, if we need to purchase raw materials, the delivery time is depend on our supplier's delivery time.

Q5. What is the Payment Terms?
A: T/T, L/C at sight, Western Union, Paypal, etc.

Q6. Can I trust you?
A: Absolutely Yes, we are Alibaba verified supplier and you may directly choose to pay by Alibaba online guarantee transaction.
