Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FLECONN
  • Model Number: M8 Sensor Cable
  • Type: Circular Connector
  • Application: Automotive
  • Gender: Male
  • Connector: 3 4 5 6 8 Pin Male M8 Connector
  • Connector Type: Circular Connector
  • Connector Application: Industry Automation Sensor System
  • Coding Type: A Coding
  • Protection Rating: IP67
  • Screw Standard: M8
  • Termination: Solder Termination
  • Installation Type: Overmolding Type
  • Product Function: Power and Data Transimision
  • Product Name: IP67 Protection Rating 3 4 5 6 8 Pin Male Connector M8 Sensor Cable

Packaging & Delivery

Packaging Details PE Bag for IP67 Protection Rating 3 4 5 6 8 Pin Male Connector M8 Sensor Cable
Delivery Time 1-2 weeks

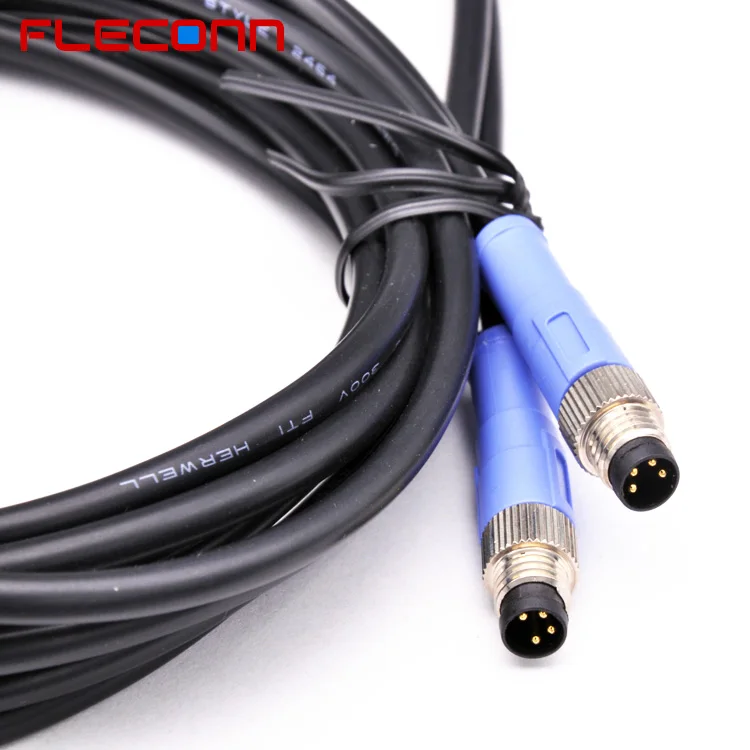

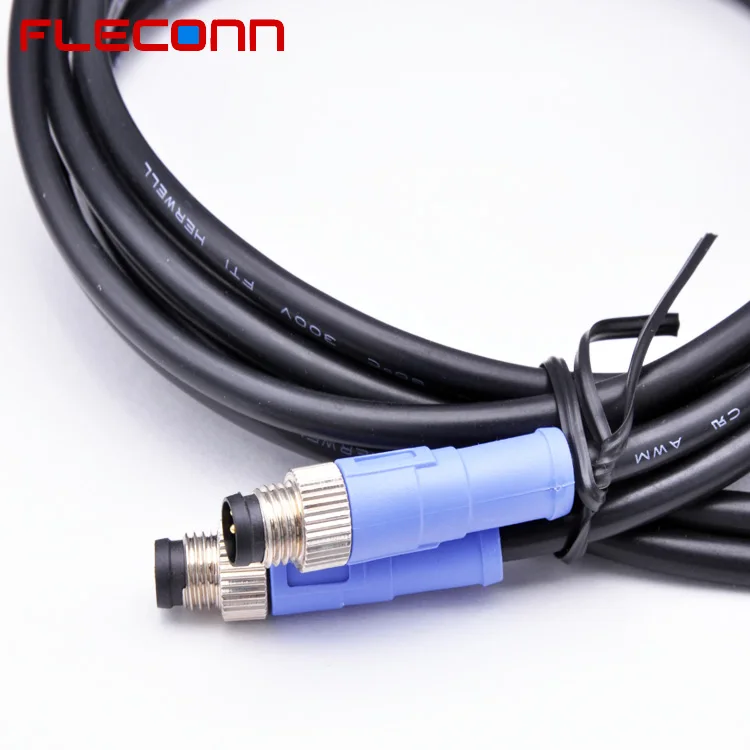

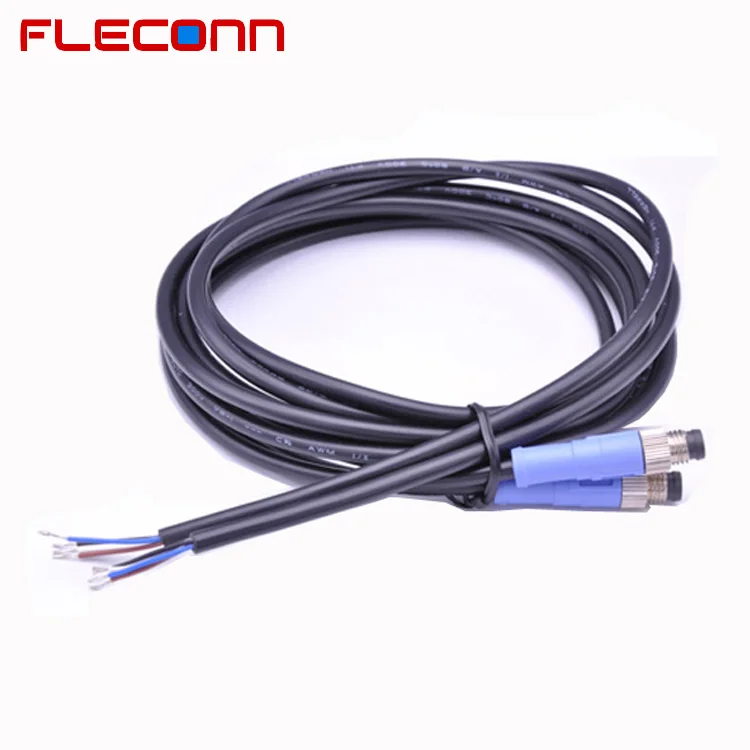

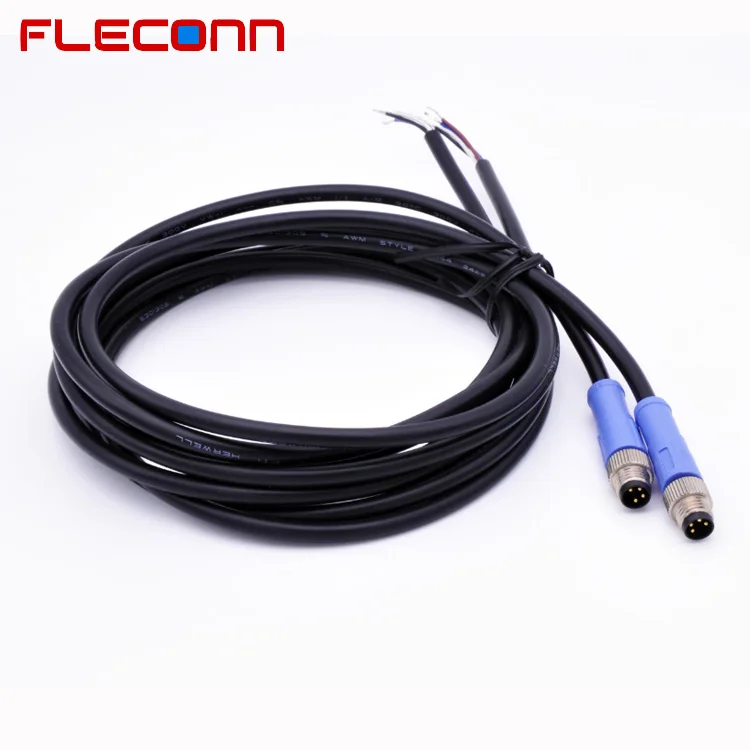

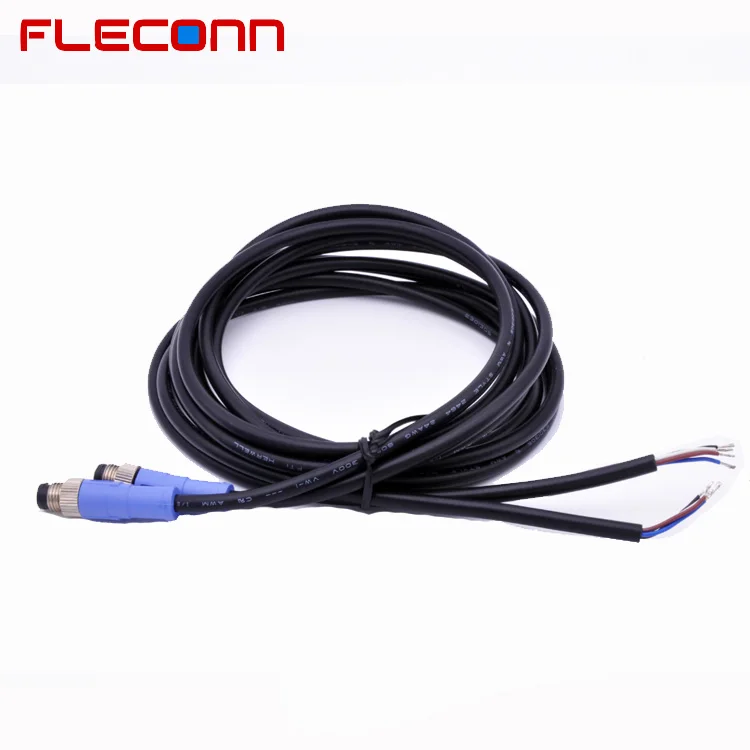

IP67 Protection Rating 3 4 5 6 8 Pin Male Connector M8 Sensor Cable

Product Description



 FLECONN can custom 3 pin 4 5 6 8 pin m8 sensor cable with overmolding for industry automation.





Product Specifications



Products Type: M8 Sensor Cable

Contact Body Type: Male

Coding Type: A Coding

Plug Type: 180 degree straight type

Wiring Method: Soldering

Contacts: 3 pin 4 pin 5 pin 6 pin 8 pin

Installation Method: M8 Screw Locking

Part Number:M8-M-A-MC-03/04/05/06



Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3-5.0mm



Specification

Number of Contacts 3, 4, 5, 6, 8

Rated Voltage 60V 30V

Rated Current 4A 1.5A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 1.0±0.03 0.8±0.03

Wire Gauge 24AWG 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
