Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FLECONN
  • Model Number: M5 Female Cable
  • Application: Industrial
  • Conductor Material: Copper
  • Jacket: PVC
  • Insulation Material: PVC
  • Connector: 3 4 Pin Female M5 Connector
  • Connector Type: Circular Connector
  • Cable Type: Control Cable
  • Cable Length: 1m
  • Jacket Material: PVC
  • Cable Application: Automobile and Automation
  • Product Type: M5 Sensor Cable
  • Product Function: Power and Data Transimision
  • Product Name: IP67 Waterproof Rating 3 Pin 4 Pin Female Connector M5 Sensor Cable

Packaging & Delivery

Packaging Details PE Bag for IP67 Waterproof Rating 3 Pin 4 Pin Female Connector M5 Sensor Cable
Delivery Time 1-2 weeks

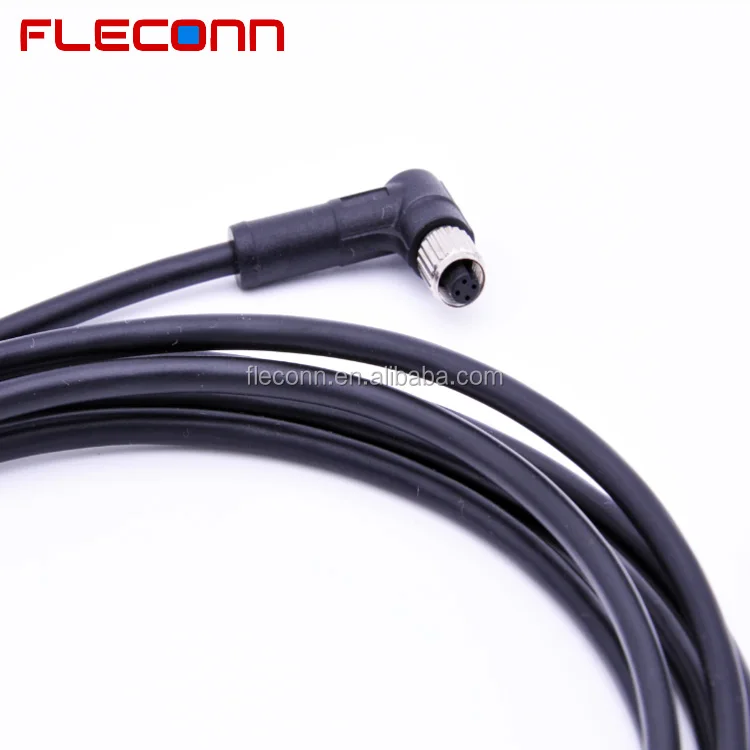

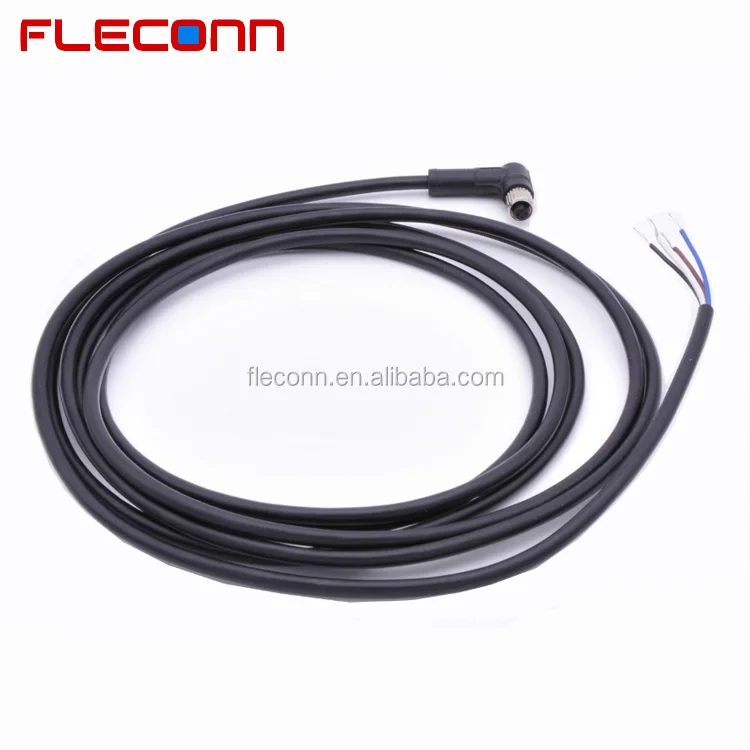

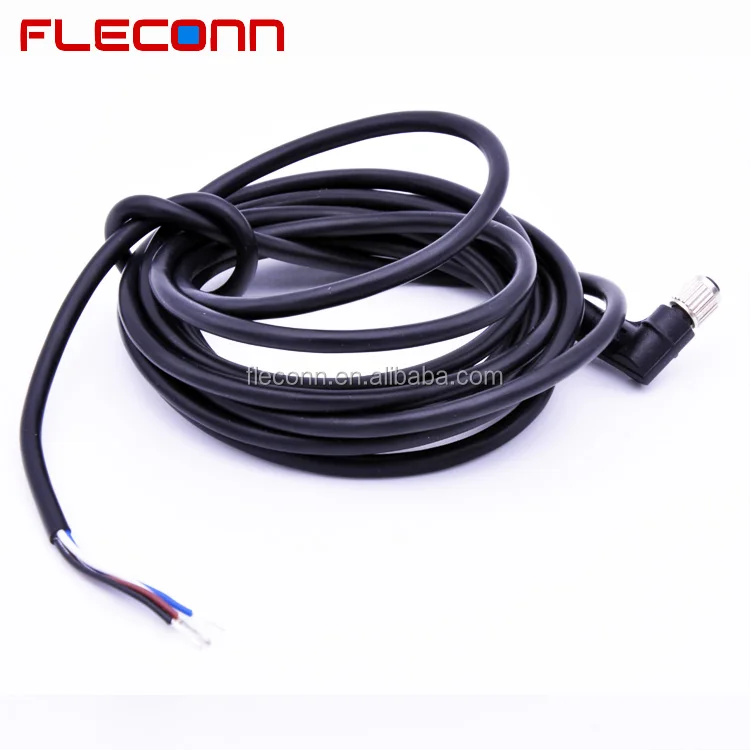

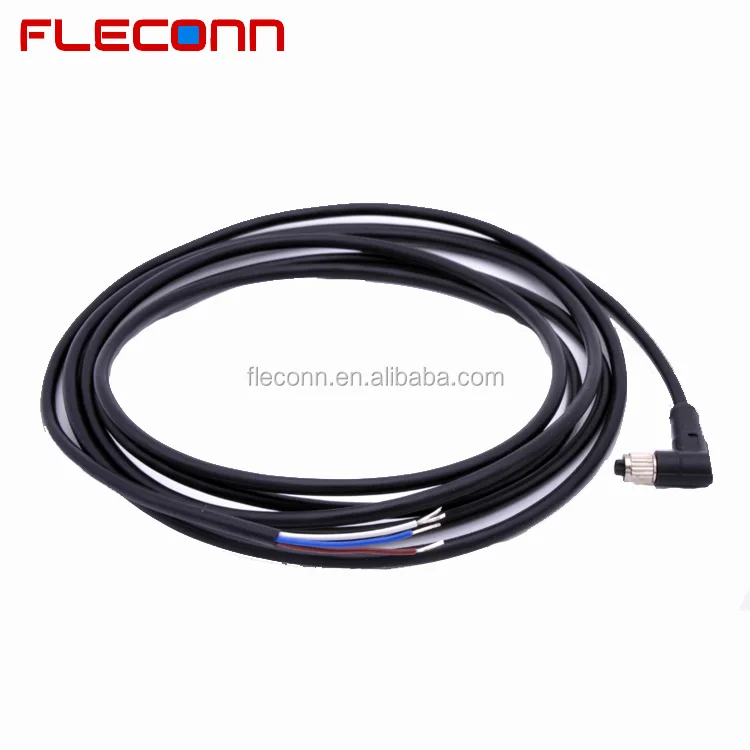

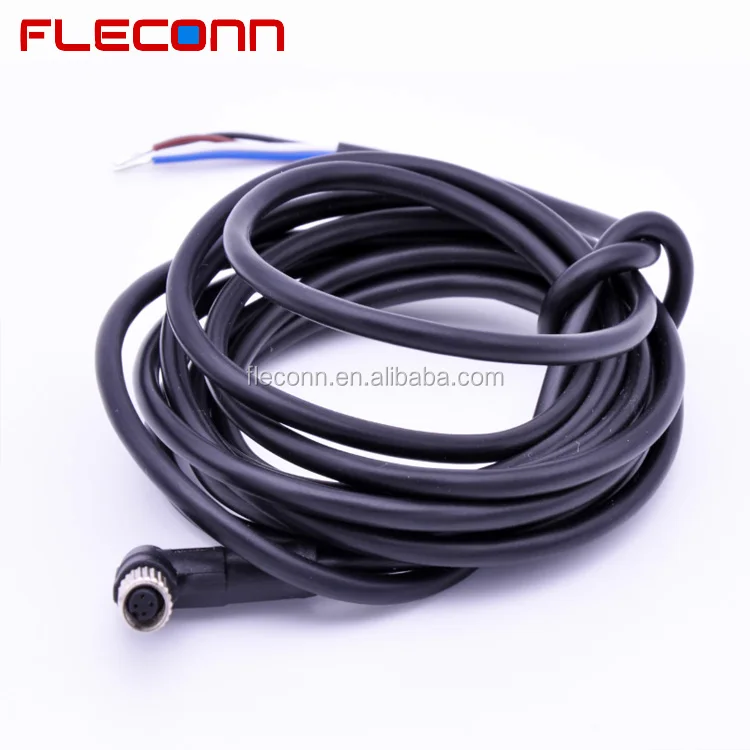

IP67 Waterproof Rating 3 Pin 4 Pin Female Connector M5 Sensor Cable



Product Description



 FLECONN can custom male female m5 connector cable for Automobile and Automation industry.





Product Specifications



Contact Body Type: Female

Coding Type: A Coding

Plug Type: Right Angled

Contacts: 3 Pos, 4 Pos

Installation Method: M5 Screw Front Mount

Part Number:M5-F-A-R-03, M5-F-A-R-04



Coupling hreaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver/gold plated)

Termination Soldering

Mating cycle 500

Environment Temperature -25℃ ~+85℃

Cable diameter



Number of Contacts 3, 4

Rated Voltage 60V

Rated Current 1A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.48±0.03

Wire Gauge 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated


Hot Sale Products







Company Information





Packaging & Shipping





Our Services



1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



FAQ



Q1. Can I get some samples?

A: Yes, regarding to standard connector and cable, if we have stock products, we can provide one piece of free sample; if there is no stock, we need to charge sample production cost. Regarding to the customized connectors and cable assemblies, we'll charge corresponding mold and tooling cost and sample production cost.

Q2. Can I choose wire guage or cable specifications?
A: Yes, we can custom wire / cable with various wire guages and cable specifications by UL and NOUL styles.


Q3. Can I choose the length or color?
A: Yes, we can custom cable length and jacket color by customer's requirements.

Q4. What is the delivery time?
A: Regarding to standard products, if we have stock materials, we can deliver the goods in one week, if we need to purchase raw materials, the delivery time is depend on our supplier's delivery time.

Q5. What is the Payment Terms?
A: T/T, L/C at sight, Western Union, Paypal, etc.

Q6. Can I trust you?
A: Absolutely Yes, we are Alibaba verified supplier and you may directly choose to pay by Alibaba online guarantee transaction.
