Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FLECONN
  • Model Number: M12 X Code Connector
  • Type: X-Coding Connector
  • Application: Industry Ethernet
  • Gender: Male
  • Connector: 8 Pin Male M12 Connector
  • Connector Type: Circular Connector
  • Connector Application: Industry Ethernet
  • Coding Type: X Code
  • Protection Rating: IP67/IP68
  • Thread Standard: M12
  • Termination: Solder Termination
  • Installation Type: Field Installable
  • Product Function: Data Transimision
  • Product Name: IP67 Metal Shell Ethernet Cat.6A 8 Pin Male M12 X Code Connector

Packaging & Delivery

Packaging Details PE Bag for IP67 Metal Shell Industry Ethernet Cat.6A 8 Pin Male M12 X Code Connector
Delivery Time 1-3 weeks

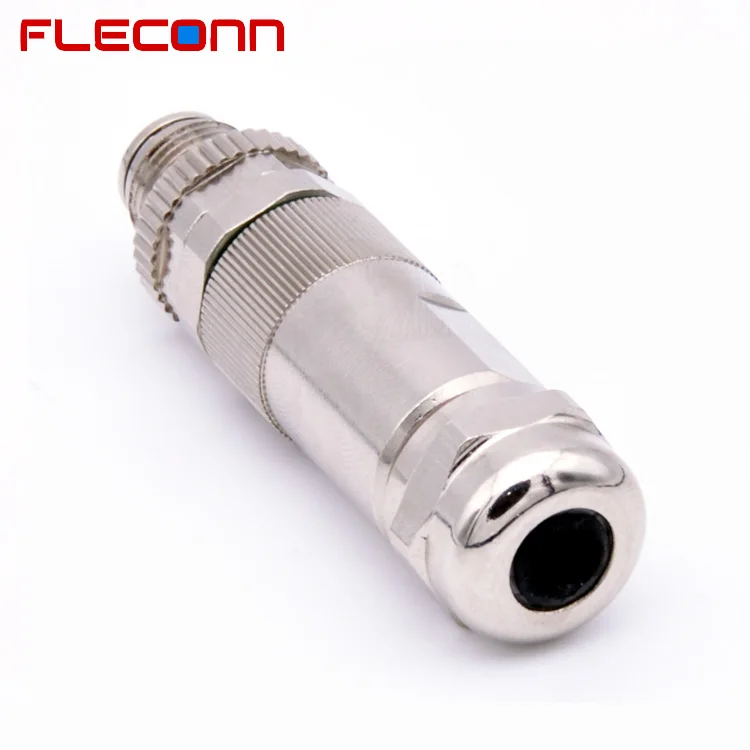

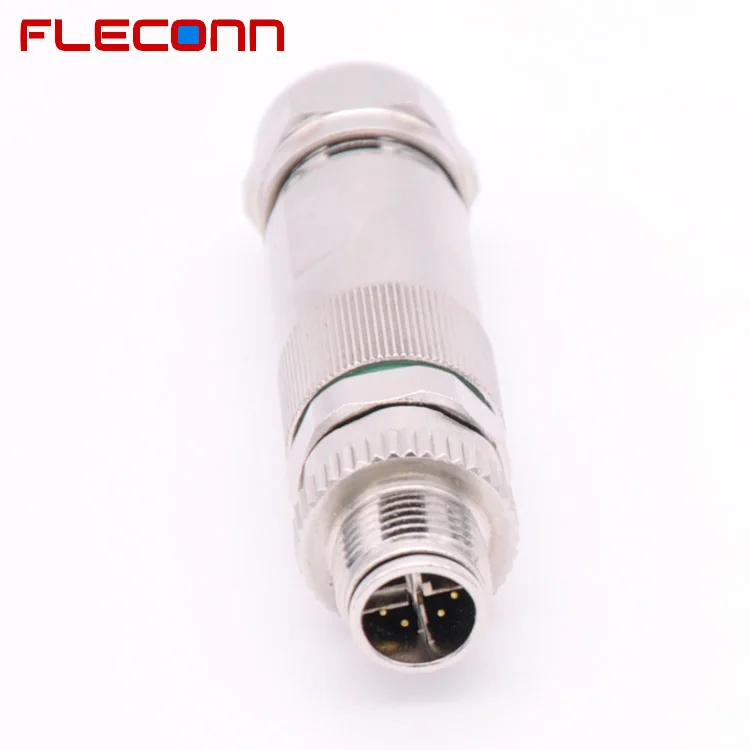

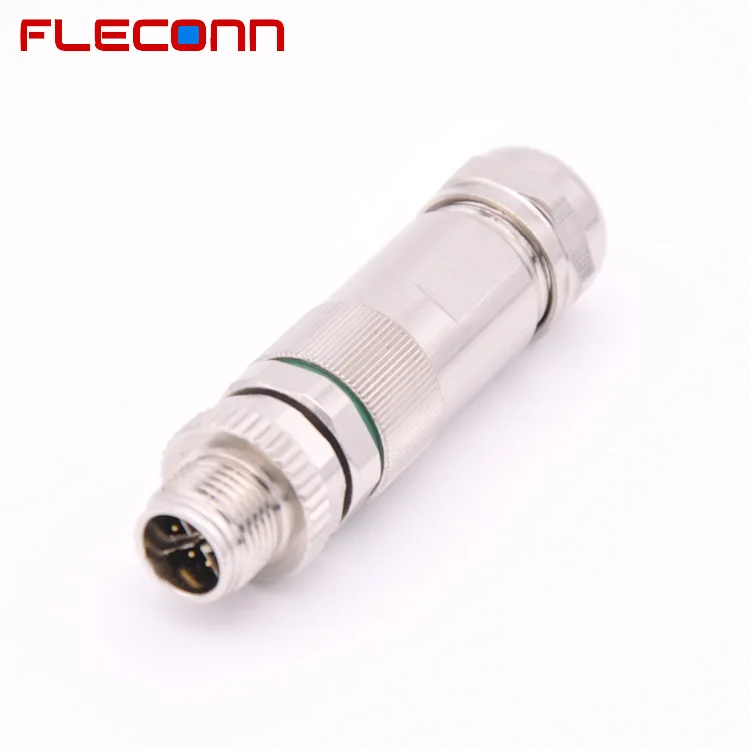

IP67 Metal Shell Industry Ethernet Cat.6A 8 Pin Male M12 X Code Connector

Product Description



 FLECONN can supply 8 pin male m12 x coding ethernet connector with shielded metal shell for industry ethernet.





Product Specifications



Products Type: M12 X Code Ethernet Connector

Gendter: Male

Coding Type: X Coding.

Plug Type: straight type

Wiring Method: Soldering

Contacts: 8 pin

Installation Method: M12 screw mount

Part Number:M12-M-X-A-08



Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ5.0-8.0mm



Specification

Number of Contacts 8

Rated Voltage 48V

Rated Current 4A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated



Hot Sale Products







Company Information





Packaging & Shipping





Our Services



1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



FAQ



Q1. Can I get some samples?

A: Yes, regarding to standard connector and cable, if we have stock products, we can provide one piece of free sample; if there is no stock, we need to charge sample production cost. Regarding to the customized connectors and cable assemblies, we'll charge corresponding mold and tooling cost and sample production cost.

Q2. Can I choose wire guage or cable specifications?
A: Yes, we can custom wire / cable with various wire guages and cable specifications by UL and NOUL styles.


Q3. Can I choose the length or color?
A: Yes, we can custom cable length and jacket color by customer's requirements.

Q4. What is the delivery time?
A: Regarding to standard products, if we have stock materials, we can deliver the goods in one week, if we need to purchase raw materials, the delivery time is depend on our supplier's delivery time.

Q5. What is the Payment Terms?
A: T/T, L/C at sight, Western Union, Paypal, etc.

Q6. Can I trust you?
A: Absolutely Yes, we are Alibaba verified supplier and you may directly choose to pay by Alibaba online guarantee transaction.
