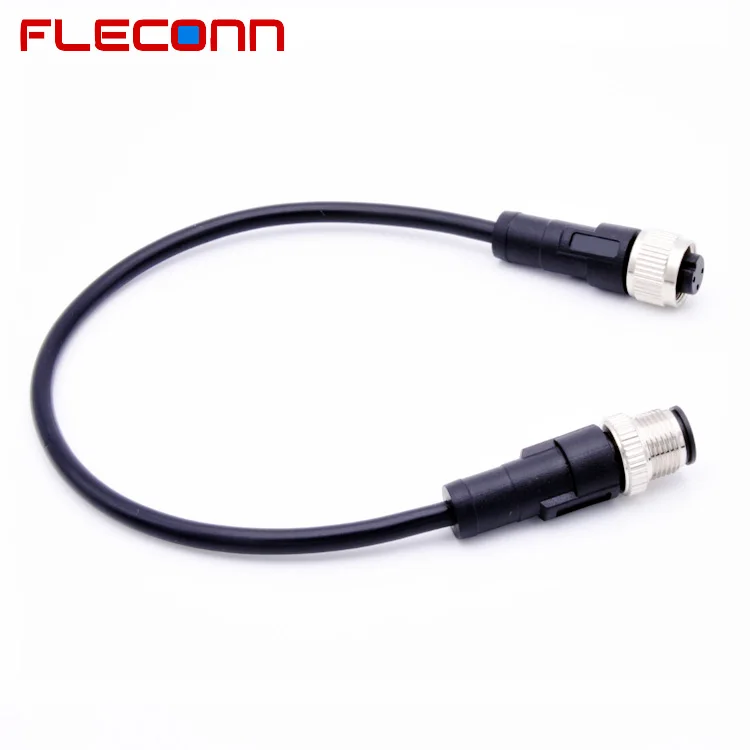

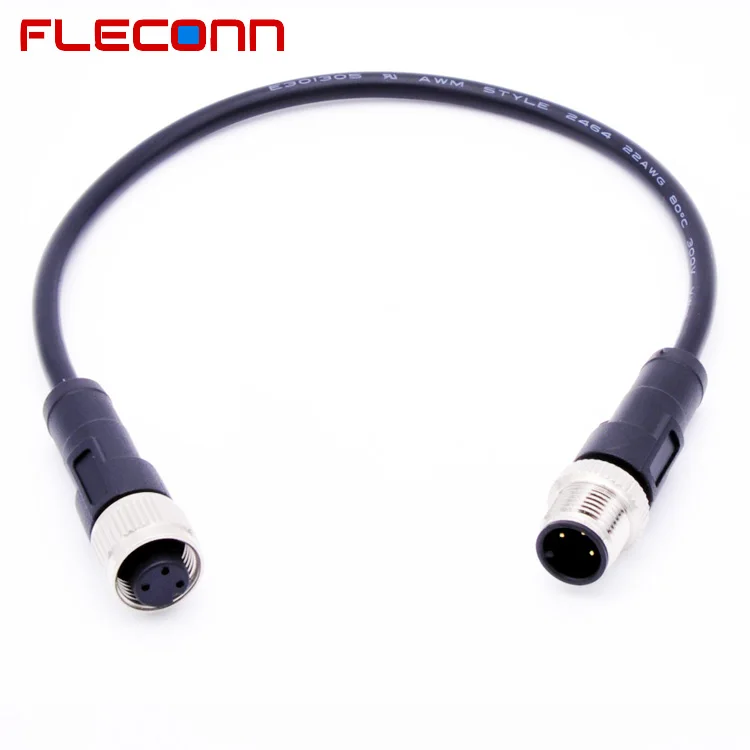

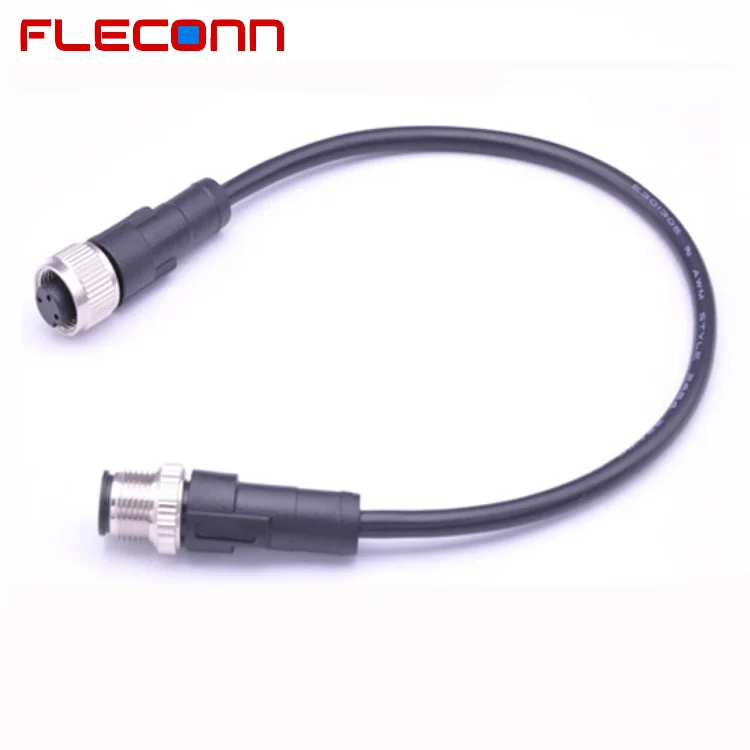

IP67 Waterproof Dust-Proof 3 Pin Male to Female M12 Extension Cable

FOB Reference Price:Get Latest Price
  • >=100 Pieces
    US $5.84
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FLECONN
Model Number:
M12 A Code Connector Cable
Type:
A-Coding Connector
Application:
Industry Automation
Gender:
Male
J1 Connector:

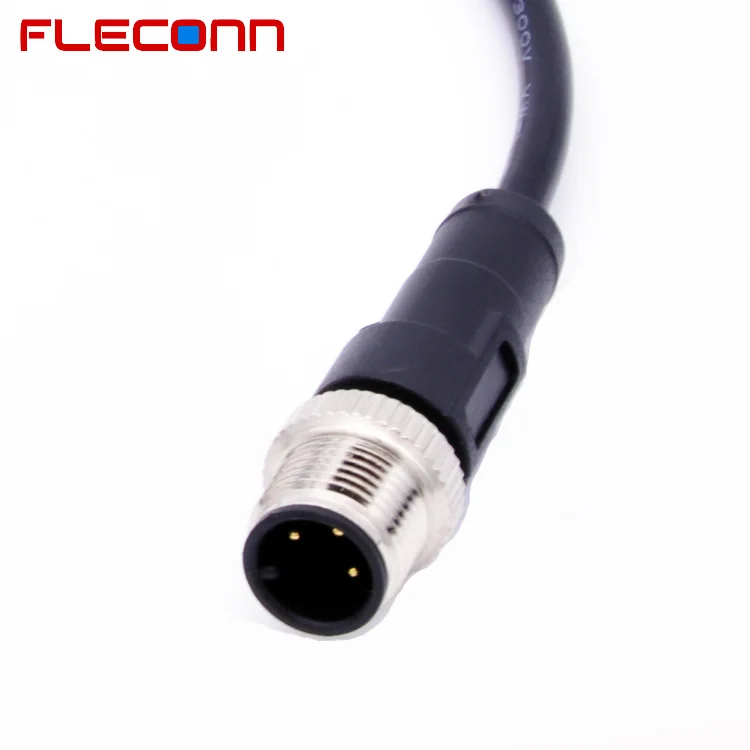

3 Pin Male M12 Connector
J2 Connector:

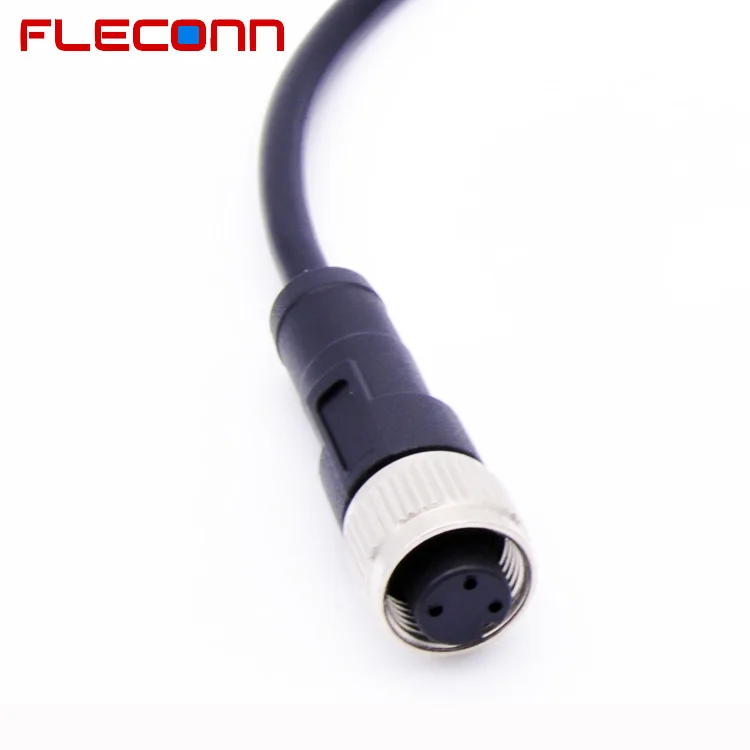

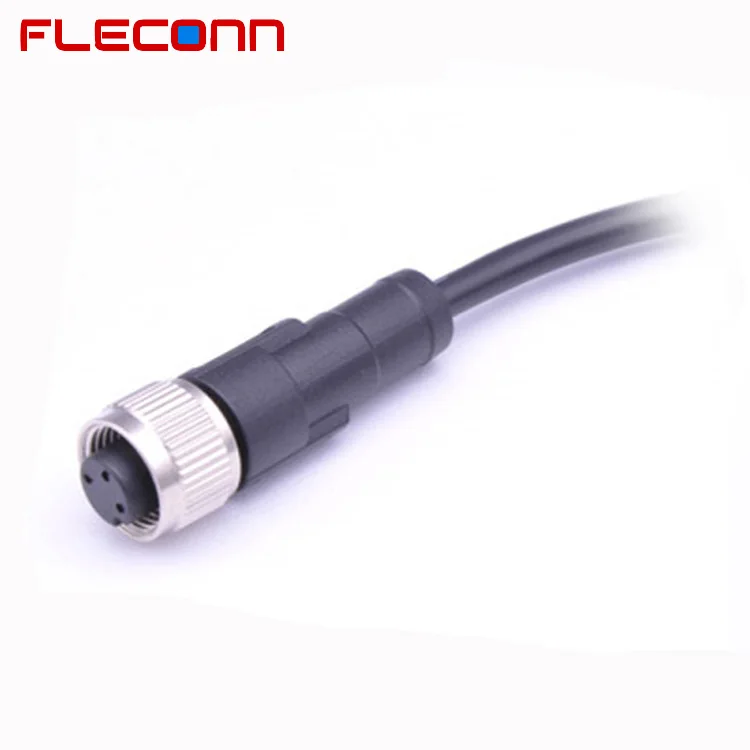

3 Pin Female M12 Connector
Connector Type:
Circular Connector
Coding Type:
A Code
Protection Rating:
IP67/IP68
Thread Standard:
M12
Termination:
Solder Termination
Installation Type:
Molding Type
Product Function:
Power and Data Transimision
Product Name:
IP67 Waterproof Dust-Proof 3 Pin Male to Female M12 Extension Cable
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Week IP67 Waterproof Dust-Proof Male to Female M12 Extension Cable
Packaging & Delivery
Packaging Details
PE Bag for IP67 Waterproof Dust-Proof 3 Pin Male to Female M12 Extension Cable
Port
Shenzhen Port
Lead Time :
1-3 weeks

IP67 Waterproof Dust-Proof 3 Pin Male to Female M12 Extension Cable

Product Description



 FLECONN can custom made 3 pin male to female m12 a coding sensor cable cordset  for industry automation system.





Product Specifications



Products Type: Male to Female M12 Extension Cable Cordset

Products Type: M12 Cordset

Contact Body Type: Male to Female

Coding Type: A Coding, B Coding.

Plug Type: 180 degree straight type

Wiring Method: Soldering

Contacts: 3 position

Part Number:M12-M-F-C03



Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ5.0-8.0mm



Specification

Number of Contacts 2, 3, 4, 5, 6, 8 12

Rated Voltage           250V 60V 30V

Rated Current              4A 2A 1.5A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 1.0±0.03 0.8±0.03 0.6±0.03

Wire Gauge 22AWG 22AWG 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

M12 Extension CableMale to Female M12 CordsetMale to Female M12 CableM12 Sensor CableM12 3 pin male cableM12 3 pin female cable
