JST Pitch 1.0mm NSH 1.25mm GH 2.0mm PH 2.54mm XH 3.96mm VH JST Connector Wire Harness

FOB Reference Price:Get Latest Price
  • 100 - 499 Pieces
    US $1.00
  • 500 - 999 Pieces
    US $0.50
  • 1000 - 2499 Pieces
    US $0.40
  • >=2500 Pieces
    US $0.35
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FLECONN
Model Number:
JST Connector Wire Harness
Application:
Electronic
Connector:
JST NSH, GH, PH, XH, VH Series Connector
Connector Type:
Wire To Board Connector
Wire Type:
UL1571 32AWG, UL1061 30AWG, UL1007 28 AWG, 26AWG, 24AWG, 18AWG
Cable Length:
Customized length
Wire Insulation Material:
PVC
Circuits:
Optional
Product Type:
Crimping Wire Harness
Product Application:
Consumer Electronics Devices, Automotive, LED Light, Machinery etc
Product Name:
1.0 NSH 1.25 GH 2.0 PH 2.54 XH 3.96 VH JST Connector Wire Harness
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Week 1.0 NSH 1.25 GH 2.0 PH 2.54 XH 3.96 VH JST Connector Wire Harnes
Packaging & Delivery
Packaging Details
PE Bag for JST Pitch 1.0mm NSH 1.25mm GH 2.0mm PH 2.54mm XH 3.96mm VH JST Connector Wire Harness
Port
Shenzhen Port for 1.0 NSH 1.25 GH 2.0 PH 2.54 XH 3.96 VH JST Connector Wire Harnes
Lead Time :
1-2 weeks

JST Pitch 1.0mm NSH 1.25mm GH 2.0mm PH 2.54mm XH 3.96mm VH JST Connector Wire Harness



Product Description



 FLECONN can custom jst NSH, GH, PH, XH, VH and so on series connector wire harnesses for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.





I. JST Housing Series



Pitch

Connector

Series

2 CircuitsCircuits4 Circuits5 Circuits CircuitsCircuits
1.0mmNSHNSHR-02V-SNSHR-03V-SNSHR-04V-SNSHR-05V-SNSHR-06V-SNSHR-07V-S
1.25mmGHGHR-02V-SGHR-03V-SGHR-04V-SGHR-05V-SGHR-06V-SGHR-07V-S
2.0mmPHPHR-2PHR-3PHR-4PHR-5PHR-6PHR-7
2.54mmXHXHP-2XHP-3XHP-4XHP-5XHP-6XHP-7
3.96mmVHVHR-2NVHR-3NVHR-4NVHR-5NVHR-6NVHR-7N



Pitch

Connector

Series

8 CircuitsCircuits10 Circuits11 Circuits 12 Circuits13 Circuits
1.0mmNSHNSHR-08V-SNSHR-09V-SNSHR-10V-SNSHR-11V-SNSHR-12V-SNSHR-13V-S
1.25mmGHGHR-08V-SGHR-09V-SGHR-10V-SGHR-11V-SGHR-12V-SGHR-13V-S
2.0mmPHPHR-8PHR-9PHR-10PHR-11PHR-12PHR-13
2.54mmXHXHP-8XHP-9XHP-10XHP-11XHP-12XHP-13
3.96mmVHVHR-8NVHR-9NVHR-10NVHR-11N



Pitch

Connector

Series

14 Circuits15 Circuits16 Circuits17 Circuits 18 Circuits19 Circuits
1.0mmNSHNSHR-14V-SNSHR-15V-S
1.25mmGHGHR-14V-SGHR-15V-S
2.0mmPHPHR-14PHR-15PHR-16
2.54mmXHXHP-14XHP-15XHP-16XHP-17XHP-18XHP-19
3.96mmVH



II. JST Crimp Terminal Series

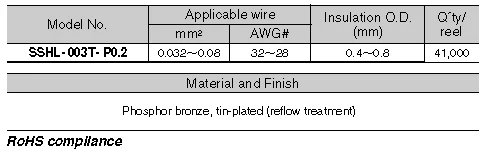

 1. SSHL-003T-P0.2 terminal mates 1.0mm pitch NSH series housing.

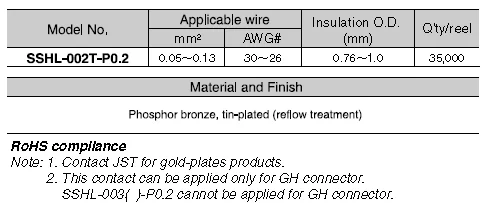

 2. SSHL-002T-P0.2 terminal mates 1.25mm pitch JST GH series housing.



3. SPH-002T-P0.5S, SPH-002T-P0.5L, SPH-004T-P0.5S terminals mate 2.0mm pitch JST PH series housing.





 4. SXH-001T-P0.6N, SXH-001T-P0.6, SXH-002T-P0.6 terminals mate 2.54mm pitch JST XH series housing.





5. SVH-21T-P1.1, SVH-41T-P1.1 terminals mate 3.96mm pitch JST VH series housing.



III. Wire Style Selection

 We can choose UL1571, UL1061, UL1007, UL1015, UL2464, UL2468, UL2651 style and 32AWG, 30AWG, 28AWG, 26AWG, 24AWG, 22AWG, 20AWG, 18AWG, 16AWG etc for customer's applications.



JST Connector Wire Harness.jpg

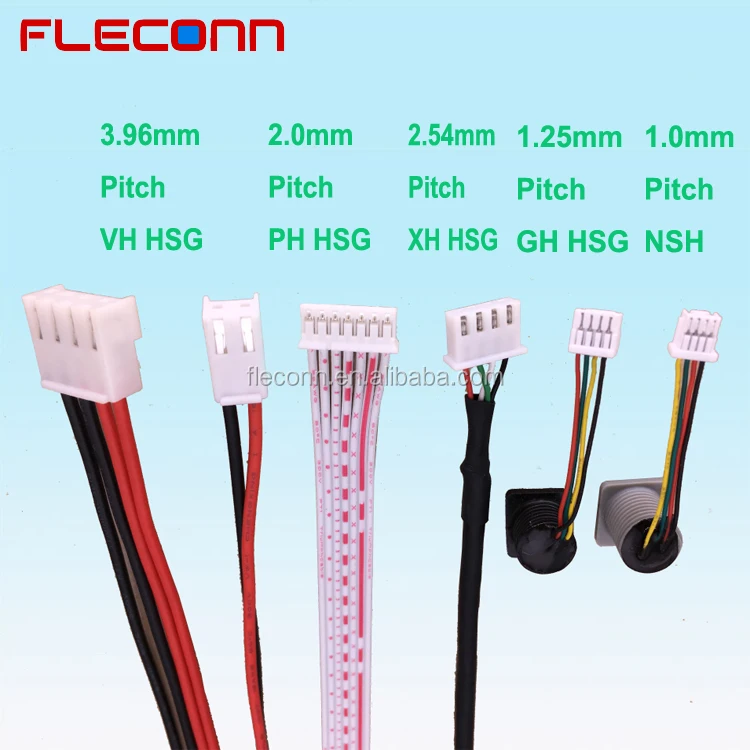

1.0 1.25 2.0 2.54 3.96 mm Pitch JST Connector Wire Harness.jpg

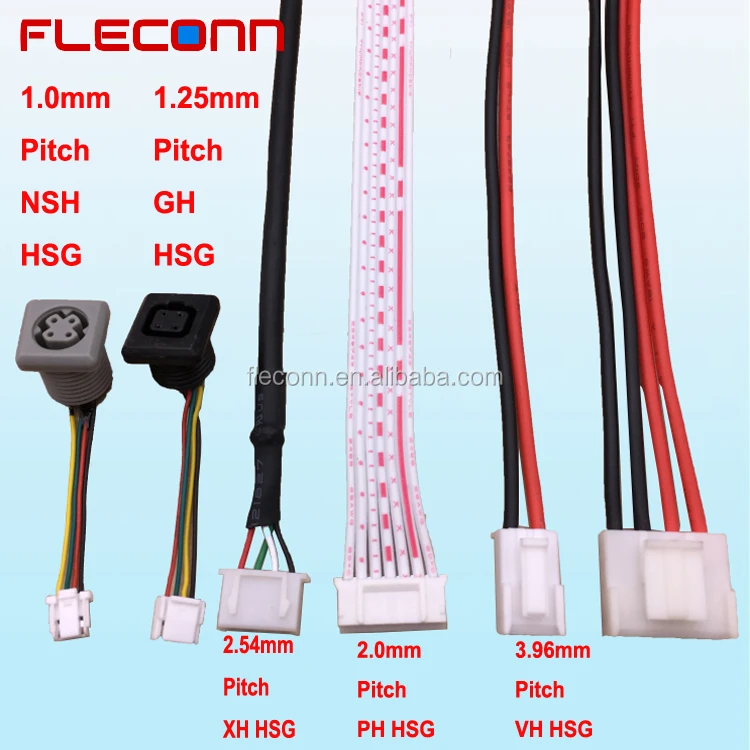

JST NSH GH PH XH VH Series Connector Wiring Harness.jpg



JST 1.0mm NSH 1.25mm Pitch GH Connector Wire Harness.jpg

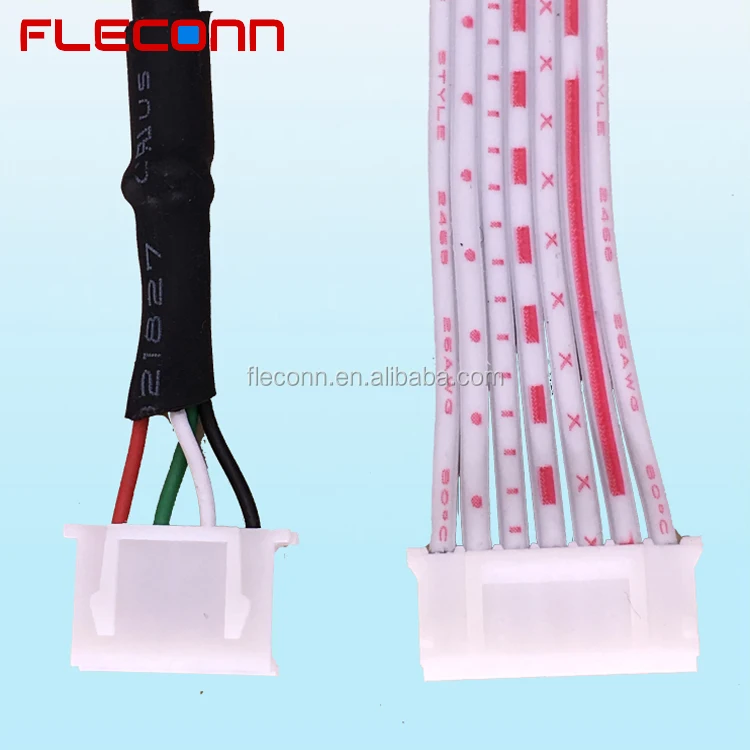

JST 2.0mm PH 2.54mm XH Connector Wire Harness.jpg



JST 3.96mm Pitch VH Connector Wire Harness.jpg
