TE AMP 1-353908-3 13Pin 1.5mm Pitch Housing Overmolded 13 Pin Wire Harness

FOB Reference Price:Get Latest Price
  • 100 - 499 Pieces
    US $8.00
  • 500 - 999 Pieces
    US $7.00
  • >=1000 Pieces
    US $6.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
13 Pin AMP Connector Wiring Harness
Model Number:
13 Pin 1.5mm Pitch Wire Harness
Application:
Electronic
Connector Type:
Socket (Female)
Connector Housing:
13 Pin Wire Harness
Pitch:
1.5mm Pitch Wire Harness
Circuit Count:
13 Pin
Series:
AMP Mini Common Terminated Connector
Termination:
353907-1
Wire Guage:
UL 2464 26AWG
Wire Harness Length:
1.5m or custom made length
Current Rating:
2A
Voltage Rating:
100V AC DC
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
A PE bag for each piece of 13 Pin 1.5mm Pitch Wire Harness.
Port
Shenzhen
Lead Time :
1-2 Weeks

TE AMP 1-353908-3 13Pin 1.5mm Pitch Housing Overmolded 13 Pin Wire Harness

Product Description.jpg



 FLECONN can custom TE AMP 1-353908-3 13Pin 1.5mm Pitch Housing 13 Pin Wire Harness with different length.



Product Specifications


1. Connector
Connector Gender: Female
Housing: 1-353908-3 wire to board crimp style connector or replacement
Termination: 353907-1 (30~24AWG) (0.05mm2~0.22mm2)  or replacement



2. Wire Guage: UL 2464 13C 26AWG



2.1 Conductor
Sectional Area AWG/mm  30/0.08TS

material Tinned Copper
Sectional Area 0.129mm²
Stranded Diameter 0.405mm



2.2 Insulation
Material PVC
The average thickness: 0.30mm
Minimum Guage: 0.25mm
Color: Black, White, Green-Yellow, Red, Green, Blue, Orange, Yellow, Purple, Brown, Gray,  Pink, light blue or other available color.
Insulation Diameter: 1.03±0.1mm



2.3 Jacket

 Material: PVC

 Jacket Color, Black/Gray

 The average thickness: 0.80mm

 Overall Diameter: 6.4mm



3. Electrical Performance:
Rating voltage: 100V AC
Rating Current: 2.0A



4. Mechanical Performance:
100 cycles at each



5. Temperature
operating temperature, fixed installation: -25 to 80℃.



Service: Wiring Harness OEM
Certificate: CE, RoHS



Detailed Images.jpg

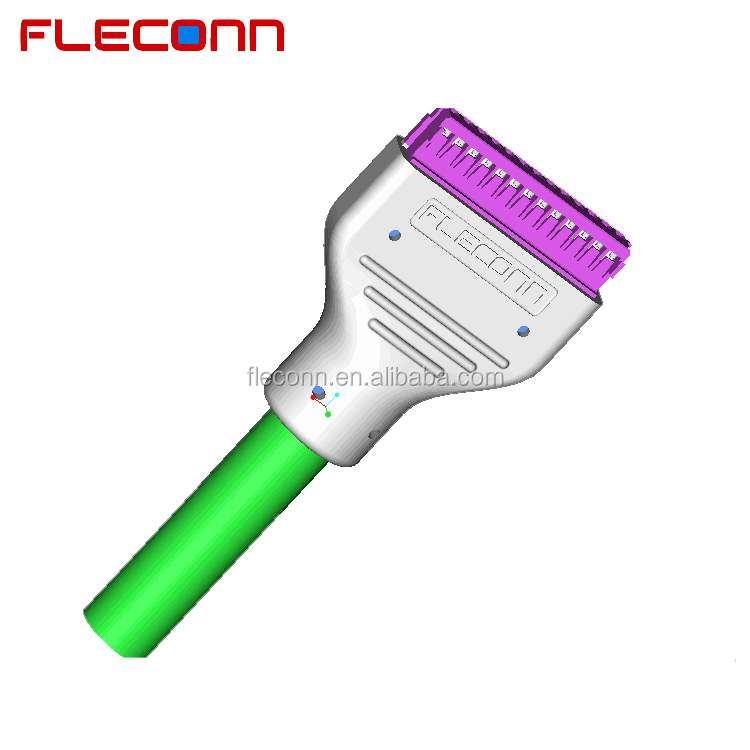

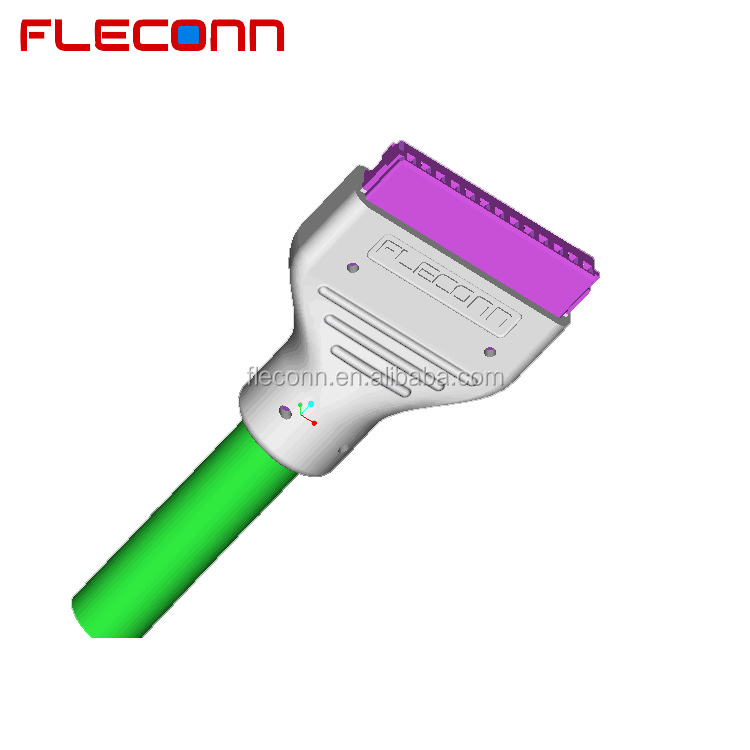

 1.5mm Pitch Wire Harness.jpg13 Pin Wire Harness.jpg
