Industry Automation 3 4 5 Pin Screw Termination Male M8 Sensor Connector

FOB Reference Price:Get Latest Price
  • >=100 Pieces
    US $2.85
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FLECONN
Model Number:
M8 Sensor Connector
Type:
Circular Connector
Application:
Automotive
Gender:
Male
Connector:
3 4 5 Pin Male M8 Connector
Connector Type:
Circular Connector
Connector Application:
Industry Automation Sensor System
Coding Type:
A-Coded
Waterproof Rating:
IP67
Screw Standard:
M8
Termination:
Screw Termination
Installation Type:
Field Assembly
Product Function:
Power and Data Transimision
Product Name:
3 4 5 Pin Screw Termination Male M8 Sensor Connector
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Week Industry Automation 3 4 5 Pin Screw Termination Male M8 Sensor
Packaging & Delivery
Packaging Details
PE Bag for Industry Automation 3 4 5 Pin Screw Termination Male M8 Sensor Connector
Port
Shenzhen Port
Lead Time :
1-2 weeks

Industry Automation 3 4 5 Pin Screw Termination Male  M8 Sensor Connector

Product Description



 FLECONN can supply field assembly 3 pin 4 pin male m8 sensor connector with screw terminals and IP67 waterproof plastic cover for industry automation.





Product Specifications



Products Type: M8 Sensor Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: Straight Type

Contacts: 3 Pin 4 pin 5 pin 6 pin 8 pin

Installation Method: M8 Screw Locking

Part Number:M8-M-A-PS2-03/M8-M-A-PS2-04



Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3-5.0mm



Specification

Number of Contacts 3, 4, 5, 6, 8

Rated Voltage 60V 30V

Rated Current 4A 1.5A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 1.0±0.03 0.8±0.03

Wire Gauge 24AWG 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

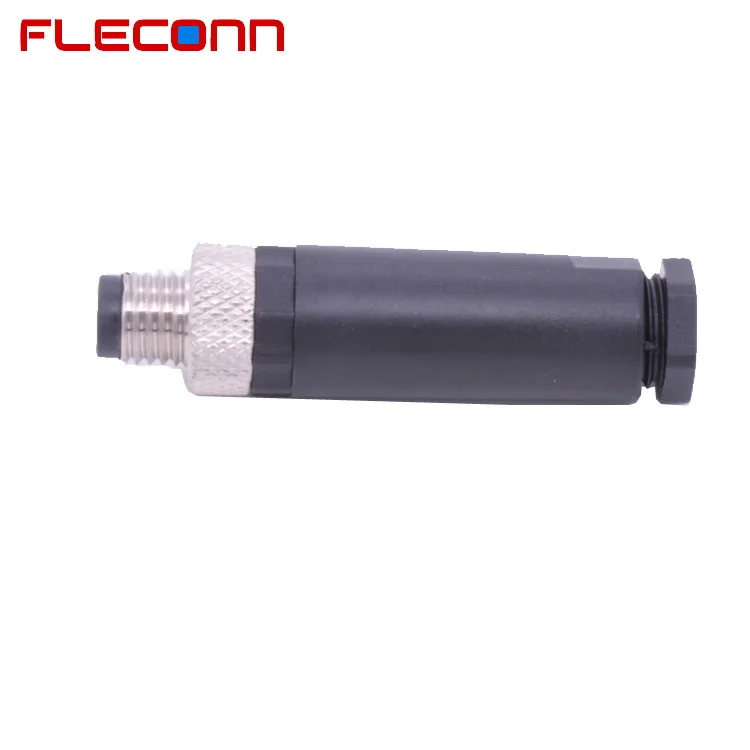

3 pin m8  male onnector

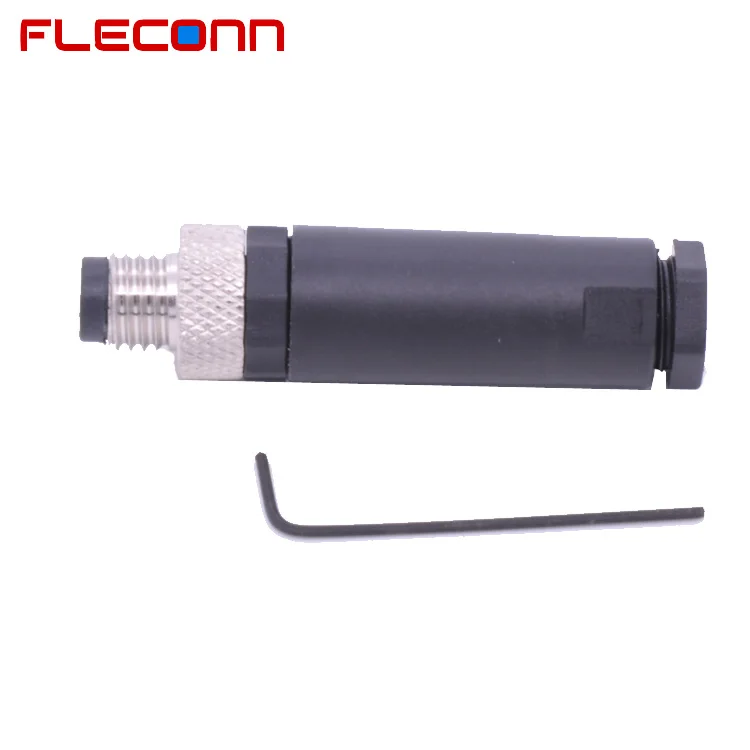

Screw Terminal M8 Connector

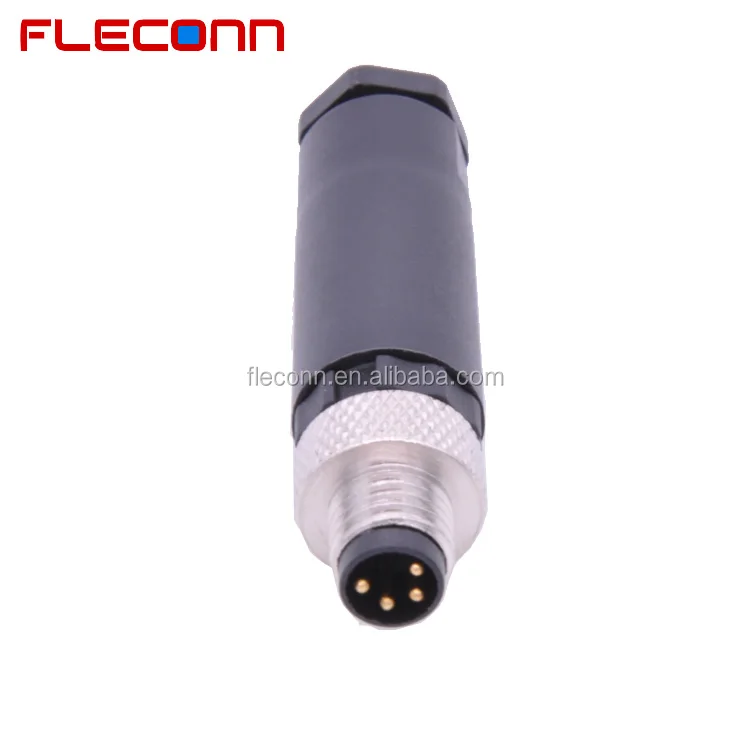

m8 4 pin connector.jpg

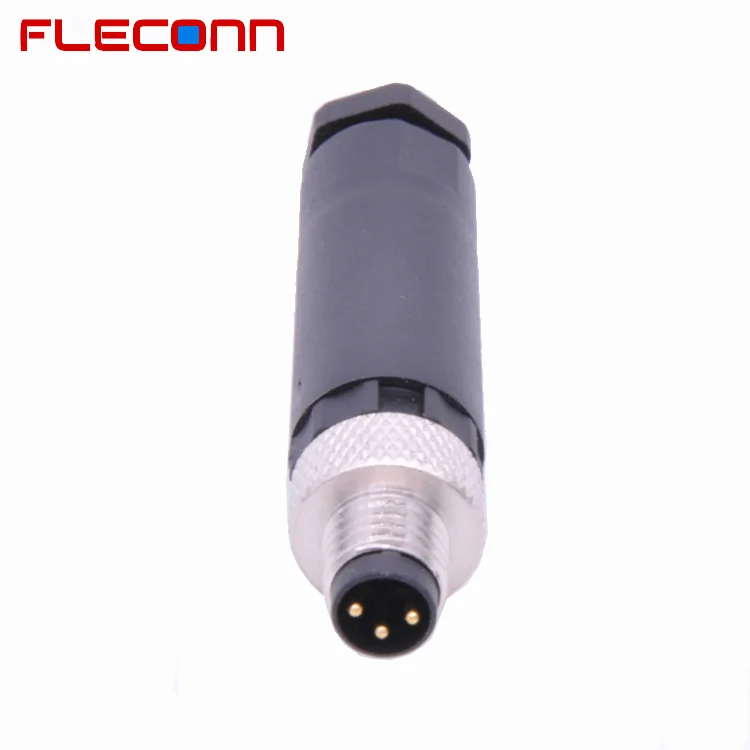

m8 connector 3 pin
